Pompa de circulatie Biral CompAX 25-6 180 RED

Foaie_de_date_CompAX_25-6_180_RED (1).pdf

Pompa de circulatie

CompAX 25-6 180 RED

Inkl. thermal insulation shells,

Biral Connector and angled connector

EEI <=0,17; 1x230V

High-efficiency built in pipe pump

with permanent magnet motor

for feeding hot water

according to VDI 2035, with continuous

speed control for:

-Proportional pressure pp

-Constant pressure cp

-Constant speed cs

Feed medium: Apa

Feed height:

Feed volume:

Medium temperature: 2 °C...110 °C

Ambient temperature: 0 - 40°C

Max. operating pressure: 0 kPa

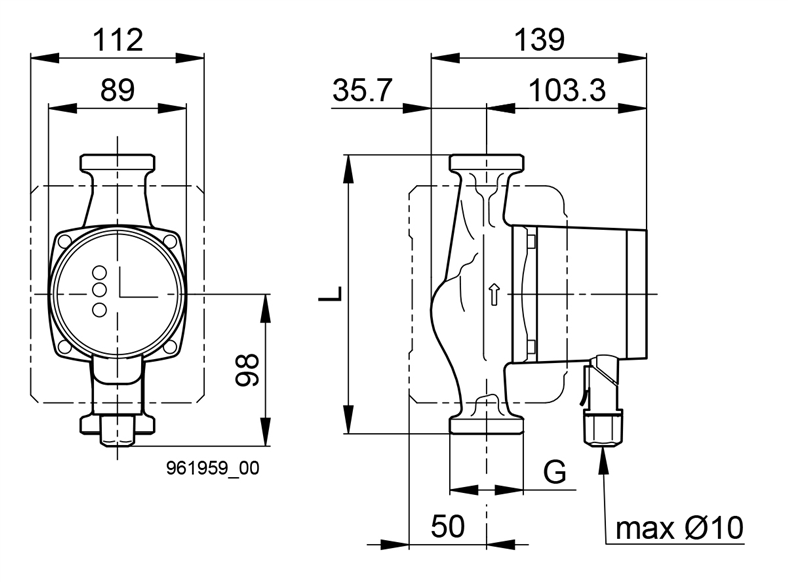

Diameter nominal: DN 25

Installation lenght: 180 mm

Flange connection: G 1 1/2"

Rohranschluss: Rp 1"

Voltage: 230 V

Frequency: 50 / 60 Hz

Motor input: 0.003 kW...0.034 kW

Nominal current: 0.03 A...0.27 A

Type of protection: IP X4D

Insulation class: F (155°C)

Motor protection:Integrated

Pump casing: grey cast iron

Impeller: PES 30%GF

-Fault display

-Power input diplay

-Flow indicator

-Key lock

-Operating status display

Gross weight: 1.9 kg

L, PE, N Power supply
